MG1000-450W™ (Inner Pack of 6 Fixtures)
The MG1000-450W™ is an Integrated long-life 450LM LED Array with MOTION SENSOR that is (Equal to a 40 Watt Light Bulb) in an affordable, energy saving security lighting solution.
Link to MG1000-450W – OWNERS MANUAL
OVERVIEW VIDEO – ADVANTAGES OF USE VIDEO
Adaptor Plates – Optional White Adaptors
The MG1000-450™ comes complete with all mounting screws and is packed in a Ready for Display, Tamper Proof Sealed Blaster Package.
Please watch the following VIDEO to see what Advantages the MG1000-450 will have over standard RV Lighting and what mounting options are available.
MG1000-450W – OPTIONAL MOUNTING ACCESSORIES
The ADAPTOR-PL-W will match the Hole Patterns of most fixtures used in the RV industry today. Please reference this Link to the MOTION-GUARD ADAPTOR-PL FITMENT CHART for fixture replacement details and note that in most cases the ADAPTOR-PL-W will also COVER any FOOT PRINT LEFT UN-PAINTED once the OLD FIXTURE has been removed.
The ADAPTOR-PL-SW will match the Hole Patterns of most fixtures used in the RV industry today. Please reference this Link to the MOTION-GUARD ADAPTOR-PL-S FITMENT CHART for fixture replacement details and note that in most cases the ADAPTOR-PL-SW will also COVER any FOOT PRINT LEFT UN-PAINTED once the OLD FIXTURE has been removed.
The ADAPTOR-PL-RW will COVER the FOOT PRINT LEFT UN-PAINTED once the OLD FIXTURE has been removed. Please reference this Link to the MOTION-GUARD ADAPTOR-PL-R FITMENT CHART for fixture replacement details.

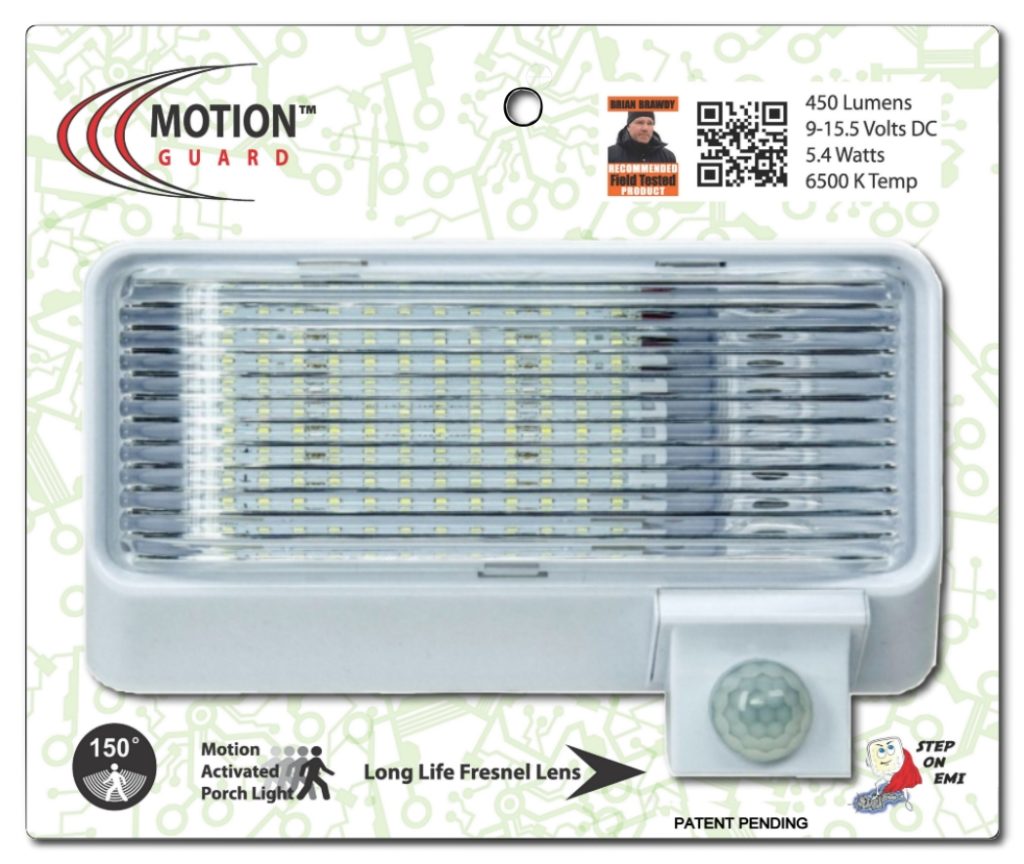

MG1000-450W – PRODUCT OVERVIEW
The MG1000-450W™ is a functional White RV Outdoor LED Floodlight with Adjustable Motion Sensor.
Created by “GREGG WILSON DESIGNS”, the MG1000-450W™ is an integrated long-life 450LM LED Array (Equal to a 40 Watt Light Bulb) in an affordable, energy saving security lighting solution. The MG1000-450W™ provides maintenance-free general and security illumination for RV outdoor use applications. Its Bright, uniform illumination is ideal for camping areas and egress easements creating an inviting exterior space as well as providing safety and security when camping in unfamiliar locations. The MG1000-450W™ with the built in Photo Sensor, will Arm and Disarm automatically while in Motion Mode, one of the most defining features of the MG1000-450W™ is that it is “EMI Suppressed” so as not to affect your TV or Radio reception. The fixture my newest version of “POLARITY GUARD™” to ease the difficulty of the installation by correcting the Polarity in the RV Automatically if needed. The fixture also has “INTELA-SENSOR™” that alerts when the coach battery is at or below 11.5 Volts by blinking a RED Led (Fixture is powered by the Coach Battery).
- Two modes of operation;
- Porch Light Mode
- Motion Activated Light Mode
- “POLARITY GUARD™” equipped,
- “INTELA-SENSOR™”– alerts when the battery is at or below 11.5 Volts,
- 450LM LED Array (Equal to a 40 Watt Light Bulb),
- Rugged UV Stabilized Polycarbonate White Housing,
- Clear UV Stabilized Polycarbonate Lens is fully Gasketed to keep out moisture, dirt and bugs,
- Fresnel Lens made from High-Density Polyethylene (HDPE) to give long life,
- Operational Voltage, 12 Volts DC,
- Amp Draw on Battery with array illuminated, .45 Amps.
- Watts, 5.4,
- Single array motion sensor provides 150° detection with up to 35 feet forward range,
- Sensitivity Adjustable Knob provides precision control,
- For side wall mounting only,
- Can be mounted in Wet Locations,
- Guaranteed for one year against mechanical defects.
- Length: 8″
- Width: 4.5″
- Height: 2.25″
- Bulb Type: LED
- Voltage: 12 DC (Fixture is powered by the Coach Battery)
|Dimensions||15 x 11 x 9 in|
